Compare to Experimental Data
We show how to compare yadism predictions to an HERA measurement (see here for an overview), specifically this dataset.
Preparing the dataset
Our dataset can be downloaded from the NNPDF server:
[1]:
!wget -q -N https://data.nnpdf.science/yadism/HERA12B2_NCem.dat
[2]:
import pandas as pd
# Load the experimental data via pandas
data = pd.read_csv("HERA12B2_NCem.dat", sep="\s+")
data[["x", "Q2", "Sigma"]]
[2]:
| x | Q2 | Sigma | |
|---|---|---|---|
| 0 | 0.0008 | 60.0 | 1.483100 |
| 1 | 0.0013 | 90.0 | 1.466000 |
| 2 | 0.0015 | 90.0 | 1.421900 |
| 3 | 0.0020 | 90.0 | 1.270000 |
| 4 | 0.0016 | 120.0 | 1.438800 |
| ... | ... | ... | ... |
| 154 | 0.4000 | 20000.0 | 0.205990 |
| 155 | 0.6500 | 20000.0 | 0.017364 |
| 156 | 0.4000 | 30000.0 | 0.230730 |
| 157 | 0.6500 | 30000.0 | 0.044179 |
| 158 | 0.6500 | 50000.0 | 0.082210 |
159 rows × 3 columns
Computing the yadism predictions
We are now going to compute the yadism predictions at the same kinematic points as provided by the experimental measurements. First, we need to prepare the theory and observable cards.
[3]:
import warnings
import yadism
from eko import interpolation
from yadbox.export import dump_pineappl_to_file
[4]:
theory_card = {
"PTO": 2,
"FNS": "ZM-VFNS",
"DAMP": 0,
"ModEv": "TRN",
"ModSV": "unvaried",
"XIR": 1.0,
"XIF": 1.0,
"IC": 1,
"IB": 0,
"NfFF": 5,
"MaxNfAs": 5,
"MaxNfPdf": 5,
"Q0": 1.65,
"alphas": 0.118,
"Qref": 91.2,
"nf0": 4,
"nfref": 5,
"QED": 0,
"alphaqed": 0.007496252,
"Qedref": 1.777,
"SxRes": 0,
"SxOrd": "LL",
"HQ": "POLE",
"mc": 1.51,
"Qmc": 1.51,
"kcThr": 1.0,
"mb": 4.92,
"Qmb": 4.92,
"kbThr": 4.0,
"mt": 172.5,
"Qmt": 172.5,
"ktThr": 1.0,
"CKM": "0.97428 0.22530 0.003470 0.22520 0.97345 0.041000 0.00862 0.04030 0.999152",
"MZ": 91.1876,
"MW": 80.398,
"GF": 1.1663787e-05,
"SIN2TW": 0.23126,
"TMC": 1,
"MP": 0.938,
"global_nx": 0,
"EScaleVar": 1,
"kDIScThr": 1.0,
"kDISbThr": 1.0,
"kDIStThr": 1.0,
"n3lo_cf_variation": 0,
}
[5]:
observables_card = {
"PolarizationDIS": 0.0,
"ProjectileDIS": "electron",
"PropagatorCorrection": 0.0,
"TargetDIS": "proton",
"interpolation_is_log": True,
"interpolation_polynomial_degree": 4,
"interpolation_xgrid": interpolation.lambertgrid(60).tolist(),
"observables": {"XSHERANC_total": []},
"prDIS": "NC",
"NCPositivityCharge": None,
}
[6]:
def compute_predicionts() -> None:
"""Compute yadism prediction for all experimental bins."""
# prepare the kinematics for all the datapoints
curobs = data.apply(
lambda dat: {"x": dat["x"], "Q2": dat["Q2"], "y": dat["y"]},
axis=1,
)
# Update the observable & kinematics in the `observable_card`
obs_def = {
"observables" : {"XSHERANC_total": list(curobs.to_dict().values())}
} # As we saw in the previous tutorial, it has to be a dict[dict[list]]
observables_card.update(obs_def)
with warnings.catch_warnings():
warnings.simplefilter("ignore") # suppress noisy warnings
out = yadism.run_yadism(theory_card, observables_card)
# Dump computations as a pineappl grid for later use
dump_pineappl_to_file(
out, "HERA_NC_318GEV_EM_SIGMARED.pineappl.lz4", "XSHERANC_total"
)
[7]:
# Compute the predictions - slightly heavier due to complexity & number of datapoints
compute_predicionts()
┌────────────────────────────────────┐ │ │ │ __ __ _ _ │ │ \ \ / / | (_) │ │ \ \_/ /_ _ __| |_ ___ _ __ ___ │ │ \ / _` |/ _` | / __| '_ ` _ \ │ │ | | (_| | (_| | \__ \ | | | | | │ │ |_|\__,_|\__,_|_|___/_| |_| |_| │ │ │ └────────────────────────────────────┘
Plan
• XSHERANC_total at 159 pts
Calculation
yadism took off! please stay tuned ...
[1A[2K
took 86.98 s
Loading and comparing to HERA
Now, that we have our pre-computed predictions in the form of a PineAPPL grid, we can compare the results to the HERA measurements. To do so, we can load the grid and convolve it with a PDF set, specifically the NNLO NNPDF4.0 set.
[8]:
import lhapdf
import pineappl
[9]:
# Load only the central member
pdf = lhapdf.mkPDF("NNPDF40_nnlo_as_01180", 0)
LHAPDF 6.4.0 loading /home/felix/local/share/LHAPDF/NNPDF40_nnlo_as_01180/NNPDF40_nnlo_as_01180_0000.dat
NNPDF40_nnlo_as_01180 PDF set, member #0, version 1; LHAPDF ID = 331100
[10]:
# Load the pre-computed grid
grid = pineappl.grid.Grid.read("HERA_NC_318GEV_EM_SIGMARED.pineappl.lz4")
# Convolve with the PDF
yadism_data = grid.convolve_with_one(2212, pdf.xfxQ2, pdf.alphasQ2)
[11]:
# Combine the exp measurements and Yadism preds into one table
data_vs_yadism_df = pd.concat(
[
data["Q2"],
data["x"],
data["Sigma"],
pd.DataFrame([yadism_data], index=["yadism"]).T,
],
axis=1,
)

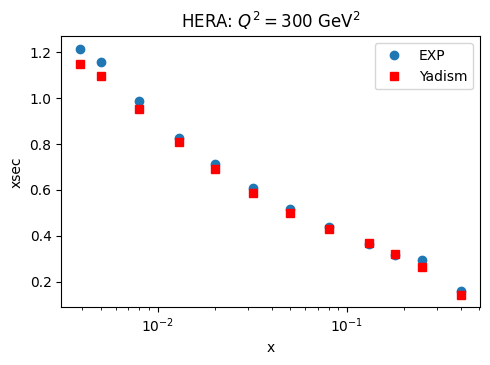

Finally, we can compare our theory predictions and the experimental data graphically.
[12]:
import matplotlib.pyplot as plt
def plot_comparisons_q2(df: pd.DataFrame, q2_value: float = 300) -> None:
fig, ax = plt.subplots(figsize=(5, 3.75), layout="tight")
# Select corresponding Q2 values
df_q2 = df[df.Q2 == q2_value]
# Plot measurements and yadism preds
ax.plot(df_q2.x, df_q2["Sigma"], "o", label="EXP")
ax.plot(df_q2.x, df_q2["yadism"], "rs", label="Yadism")
ax.set_xlabel("x")
ax.set_ylabel("xsec")
ax.legend()
ax.set_xscale("log")
ax.set_title(f"HERA: $Q^2 = {q2_value}~ \\mathrm{{GeV}}^2$")
[13]:
plot_comparisons_q2(data_vs_yadism_df)
Note that we are using the ZM-VFNS here, so we don’t expect perfect agreement as heavy quark effects are only entering through the PDF evolution.
